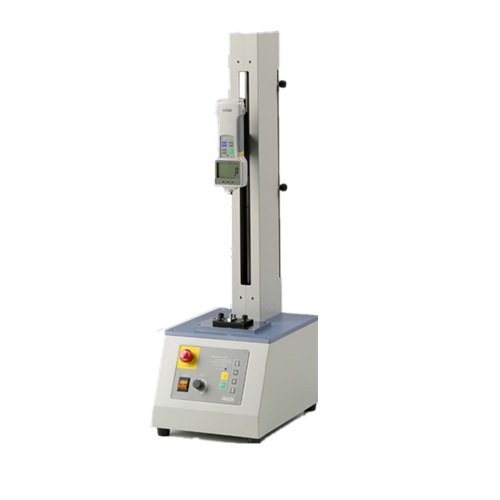

3 measuring modes are available in MX series.
manual adjust speed, manual decide speed, automatic circle decide speed
Capacity:2000N(Approx.200kgf)  Stroke with gauge: 410mm
Speed:8to240mm/min  Power supply:AC100 to 240V
Function: Emergency stop switch, Upper/lower stroke limits,
Variable speed,Select switch for max. Speed Weight:Approx.
Option:Encoders,Length meter,Longer stroke,Speed range change

［Applications］
-Various material testing up to 2000N
(measuring of tensile strength,compressive strength,shearing strength and etc).
-Analysis of mechanical parts for break point and free fit.

［Features］
-Suitable for Motive brand digital and mechanical force gauges.
-Overload protection and force control connecting with digital force gauge
-Optional scale unit implements scaling its travel length

OVERVIEW：
