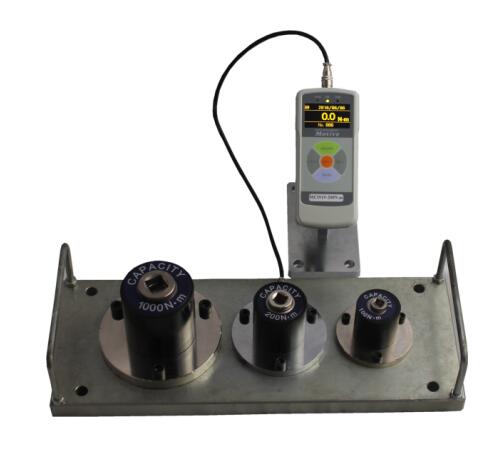

Product name: MCI919-QLS Hydraulic Pulse Torque Tester
Category: ATTONIC Product model: ACI-P
Features:
The MCI919 series torque tester is specially developed for hydraulic pulse pneumatic tools. Test for output torque and pulse number of oil pulse tool. The instrument is developed on the latest MCI test platform. The platform has powerful comprehensive power, high technology to realize various functions, ultra-high-speed sampling to obtain various processing of data, and realize various accurate analysis of tools. Display 8 languages to facilitate users around the world.
Technical Parameters:
型號 | MCI919-QLS-20N.m | MCI919-QLS-100N.m | MCI919-QLS-200N.m | MCI919-QLS-1000N.m | ||||
量程 | 1.0～20.0N.m | 5.0～100.0N.m | 10.0～200.0N.m | 50～1000N.m | ||||
準確性 | ±0.5% | |||||||
顯 示 | 采用高亮醒目的OLED屏顯示。信息容量大，顯示內容豐富 | |||||||
扭力顯示模式 | 峰值模式 | 顯示扭力最大值 | ||||||
跟蹤模式 | 隨扭力變化實時顯示扭力值 | |||||||
脈沖數(shù) | 量程 | 0～999 | ||||||
測量時間 | 1～10秒 | |||||||
顯示 | 3位數(shù)顯示 | |||||||
自動清零時間 | 1～60秒自動清零,手動設置清零0.0秒 | |||||||
自動記憶功能 | 可以記憶1000個數(shù)據(jù) 也可手動記憶 | |||||||
電源 | DC7.5V 1300mA | |||||||
重 量 | 主機 | 約600g | ||||||
傳感器 | 約950g | 約950g | 約2.60KG | |||||
When you try the oil pulse tool, please use no more than 60% of the torque

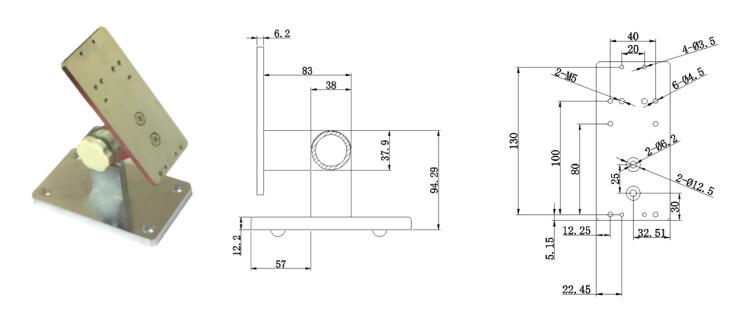

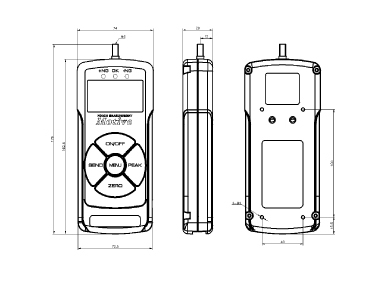

Host mount

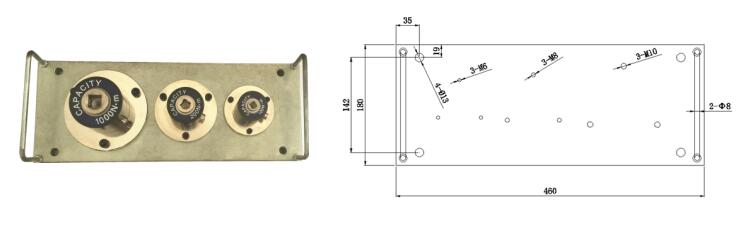

Sensor holder
Machine test schematic
