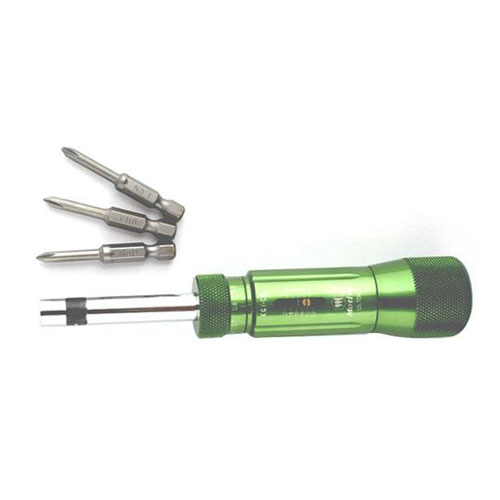

Product name: LTDK series mechanical idle torque screwdriver
Category: ATTONIC Product model: LTDK系列
Product details
package
Accessories
Product Usage:
This product is a free-running torque driver designed to tighten or loosen screws, bolts and nuts.
Technical Parameters:
型號 | 范圍 | 最小刻度 | 把手直徑 | 總長度 | 重量 |
Kgf.cm | Φmm | mm | g | ||
1.5 LTDK | 0.1-1.5 | 0.01 | 16 | 99 | 50 |
3 LTDK | 0.2-3 | 0.02 | |||
6 LTDK | 0.5-6 | 0.05 | 25 | 110 | 95 |
12 LTDK | 2-12 | 0.1 | 30 | 157 | 190 |
20 LTDK | 4-20 | 0.1 | 34 | 208 | |
30 LTDK | 4-30 | 0.1 | |||
50 LTDK | 10-50 | 0.25 | 40 | 200 | 436 |
100 LTDK | 40-100 | 0.5 | 45 | 235 | 762 |
1.5 LTDK-H | 0.1-1.5 | 0.01 | 16 | 111 | 60 |
3 LTDK-H | 0.2-3 | 0.02 | |||

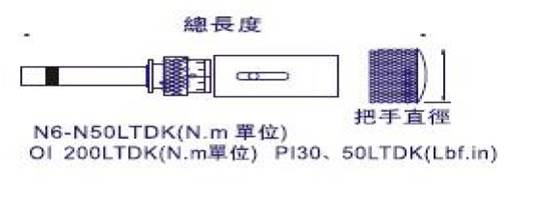

physical dimension:
Precautions:
1. Please read the instructions carefully before using this product.
2. This product is only used for measurement.
3. Avoid misuse or rude treatment.
4. Do not disassemble or damage this product.
